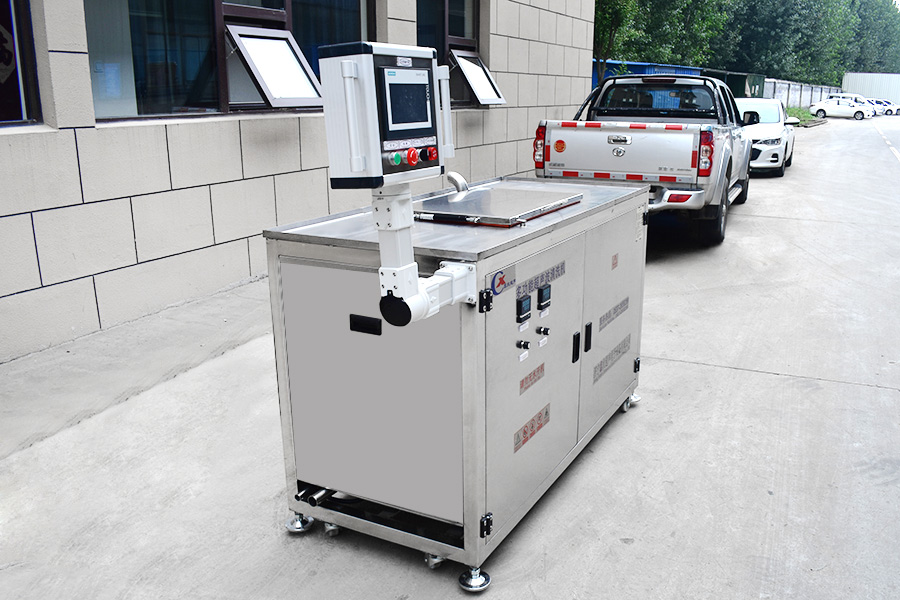

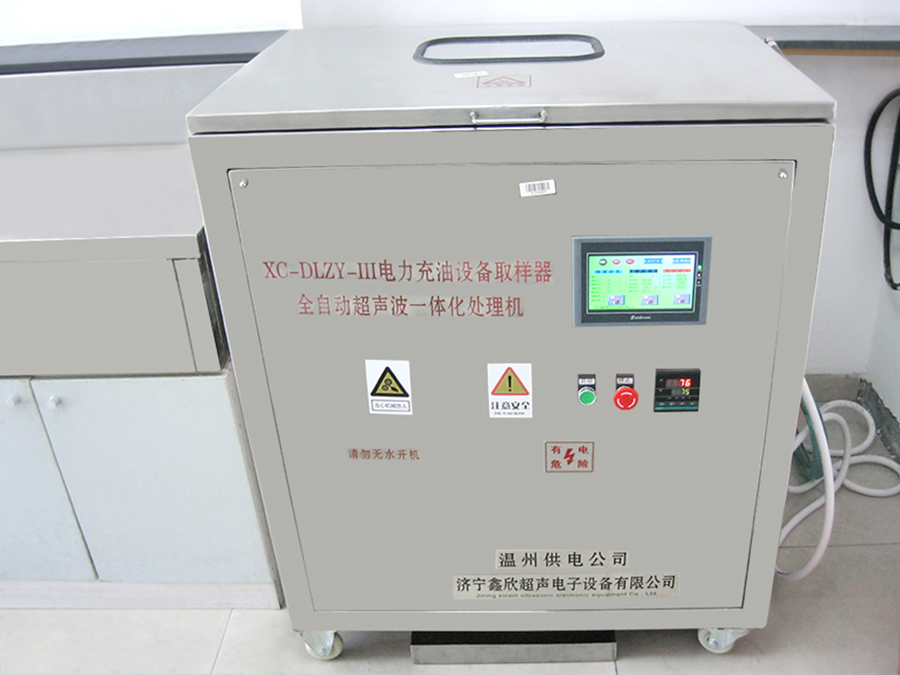

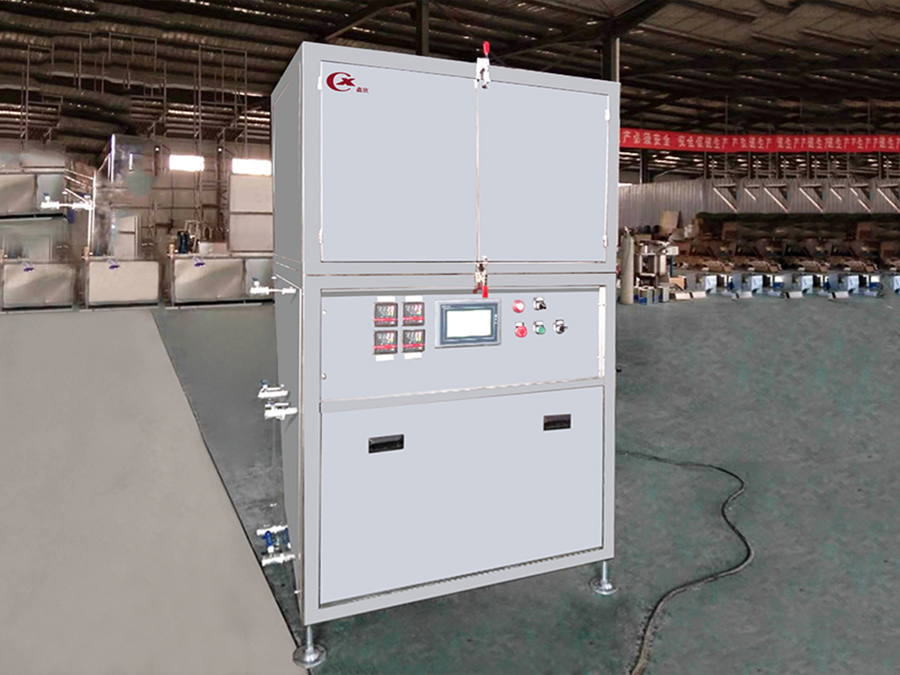

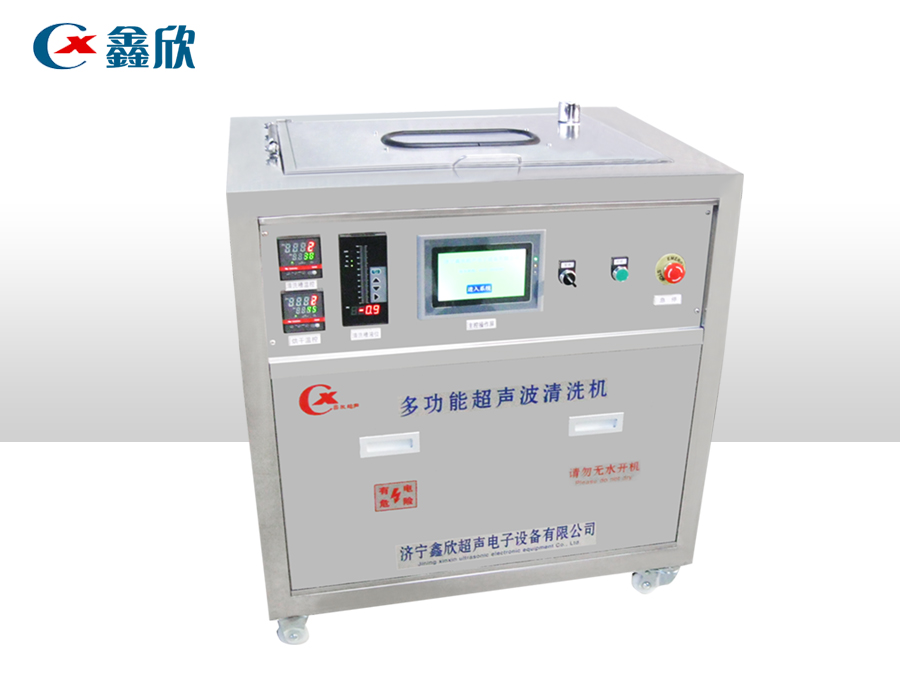

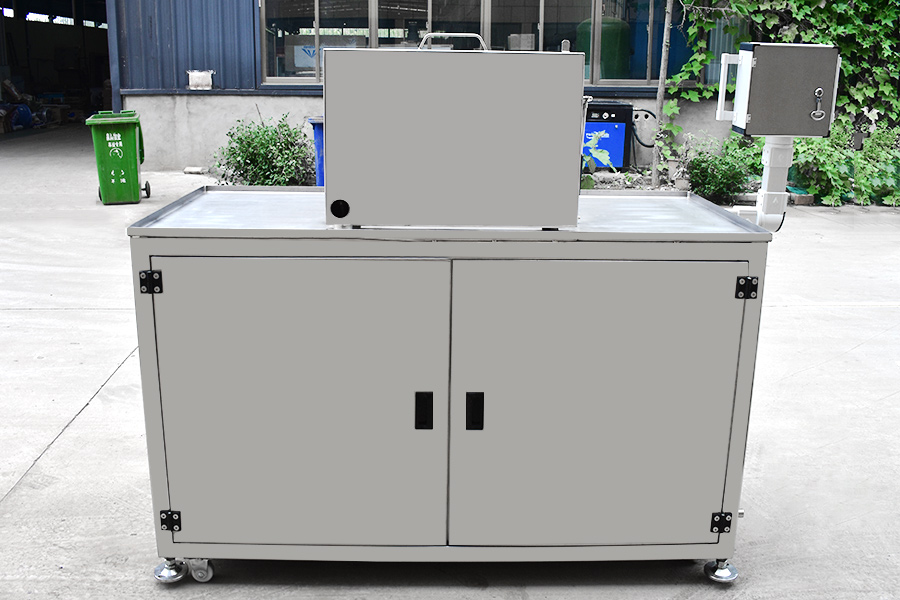

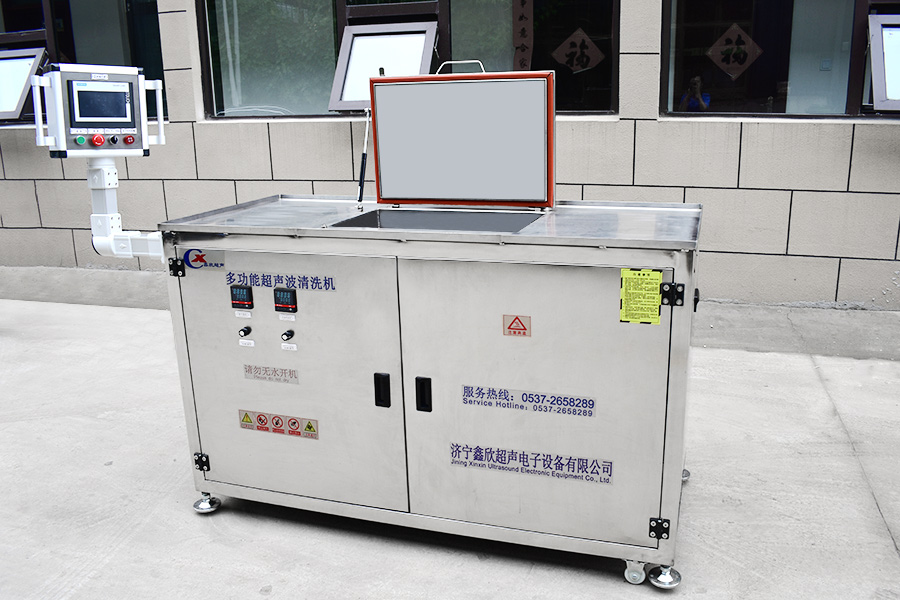

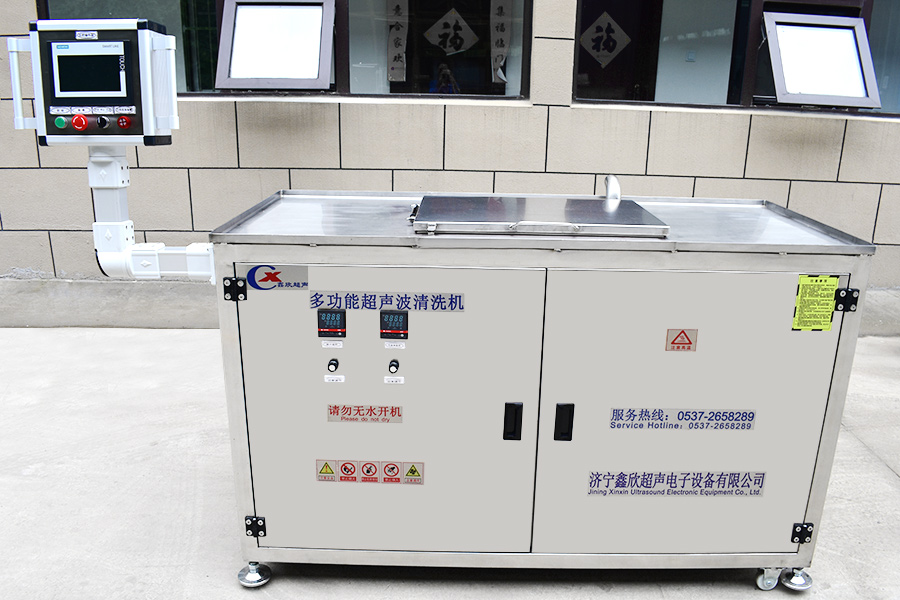

Introduction of integrated automatic ultrasonic cleaning and drying machine：
This machine is a fully automatic ultrasonic treatment equipment developed by our company. The machine realizes the full automation of ultrasonic cleaning, ultrasonic rinsing, high-pressure spraying and drying processes in a processing tank. Put the workpiece into the fixture and put it into the processing tank. After the above procedures are processed, the workpiece is taken out to be a clean and dry workpiece, which can be directly used for production or enter the next procedure. This machine is mainly composed of frame and pipeline, sound reduction system, tooling and fixture, ultrasonic cleaning system, heating and automatic temperature control, bubbling spray system, automatic sewage system, automatic drainage, drying system, PLC and touch screen control system, etc. composition. Suitable for cleaning and drying precision parts, medical equipment, syringes, samplers, glass bottles, test tubes, lenses, etc.

Main performance and characteristics：
1: Chinese display operation interface, man-machine interface touch screen operation, safe and convenient.
2: Chinese display each function setting and the working status of each process.
3: Chinese display hot water presoaking, ultrasonic cleaning, ultrasonic rinsing, high temperature spray cleaning, high pressure spray cleaning, hot air drying system liquid temperature, tank temperature, set time, working time, remaining time, liquid level and sealing The state of the cover, etc. At the same time, it displays fault alarms such as no solution, no cleaning solution, excessive temperature in the tank, and overpressure.
4: The working process of the Chinese display equipment, hot water pre-soaking, ultrasonic cleaning, ultrasonic rinsing, high temperature spray cleaning, high pressure spray cleaning, hot air drying, the above processes can be selected to run separately or combine any process according to the objects to be cleaned.
5: The equipment has an automatic liquid replenishment system, automatic water intake and drainage system, automatic overflow and drainage device, cleaning/high temperature spray preheating system, hot air drying preheating system, which greatly shortens the cleaning, spraying and drying time.
6: The equipment can be externally heated by steam to reduce energy consumption.
7: One-button operation, from hot water pre-soaking to hot air drying automatically, so as to avoid secondary pollution when objects are unloaded.
8: Changing different tooling can clean and dry different objects, one machine has multiple uses.

Technical parameter：
